Download Canon Service Tool v.1050

Service Tool v.1050 is expected to be released in June 2009. Service Tool v.1050 is an updated version of Service Tool v.1030, with the addition of new functions, namely Nozzle Check (Nozzle check pattern print) and Integration (Unified inspection pattern print).

About Canon Service Tools

• Service Tool is a portable application.
• Only supports Windows Operating System. If your PC/Laptop uses an OS other than Windows, please read the following link Open Service Tool from Another OS.
• The printer driver must have been installed on the PC/Laptop. The Service Tool cannot be used if the driver is installed in an auto-detect (plug and play) manner. Please download the printer driver on the official Canon website, then install the driver on your PC/Laptop.
• Use a USB cable connection. The Service Tool cannot be used if the printer is connected to a PC/Laptop with a wireless connection.
• Service Tool can be used to reset the printer if the printer is in Service Mode.
• Use the Service Tool according to the instructions in the Service Manual.
• If the Service Tool does not support the requested operation, or if the Service Tool does not support the printer, an error message will appear on the screen.

When should the printer be reset?

Service Tool is software used to reset the printer. The printer must be reset if:

1. Replaced the waste ink absorber. Waste ink absorber is replaced when a "Waste ink absorber full" error occurs with support code/error codes: 1700, 1701, 1702, 1703, 1704, 1705, 1712, 1713, 1714, 1715, 5B00, 5B01, 5B02, 5B03, 5B04, 5B05, 5B10, 5B11, 5B12, 5B13, 5B14, 5B15.
2. Replaced the logic board. If the printer repair is eventually replaced with a logic board, after the new logic board is installed, the printer must be reset.

Example

At full waste ink absorber error with error code 1700/5B00. Resetting the waste ink counter value to zero (D value is reset to zero) is effective if the waste ink absorber is replaced. If the D value is reset to zero but the waste ink absorber is not replaced, in the near future, waste ink will overflow from inside the printer. Resetting the D value to zero becomes effective if the waste ink absorber is replaced.

Supported Printers

Referring to the information in the Canon printer service manual, Service Tool v.1050 supports the printer:

• Canon iP4700 series: Pixma iP4700, iP4720, iP4740, iP4750, iP4760, iP4780
• Canon MP250 series: Pixma MP250, MP258, MP259 (Overseas)
• Canon MP270 series: Pixma MP270, MP276 (Overseas), Pixus MP270 (Japan/JPN)
• Canon MP490 series: Pixma MP490, MP496 (Overseas), Pixus MP490 (Japan/JPN)
• Canon MP550 series: Pixma MP550, MP558 (Overseas), Pixus MP550 (Japan/JPN)
• Canon MP560 series: Pixma MP560, MP568 (Overseas), Pixus MP560 (Japan/JPN)
• Canon MP640 series: Pixma MP640, MP640R, MP648 (Overseas), Pixus MP640 (Japan/JPN)
• Canon MP990 series: Pixma MP990, MP996 (Overseas), Pixus MP990 (Japan/JPN)
• Canon iX7000 series: Pixma iX7000 (Overseas), Pixus iX7000 (Japan/JPN)

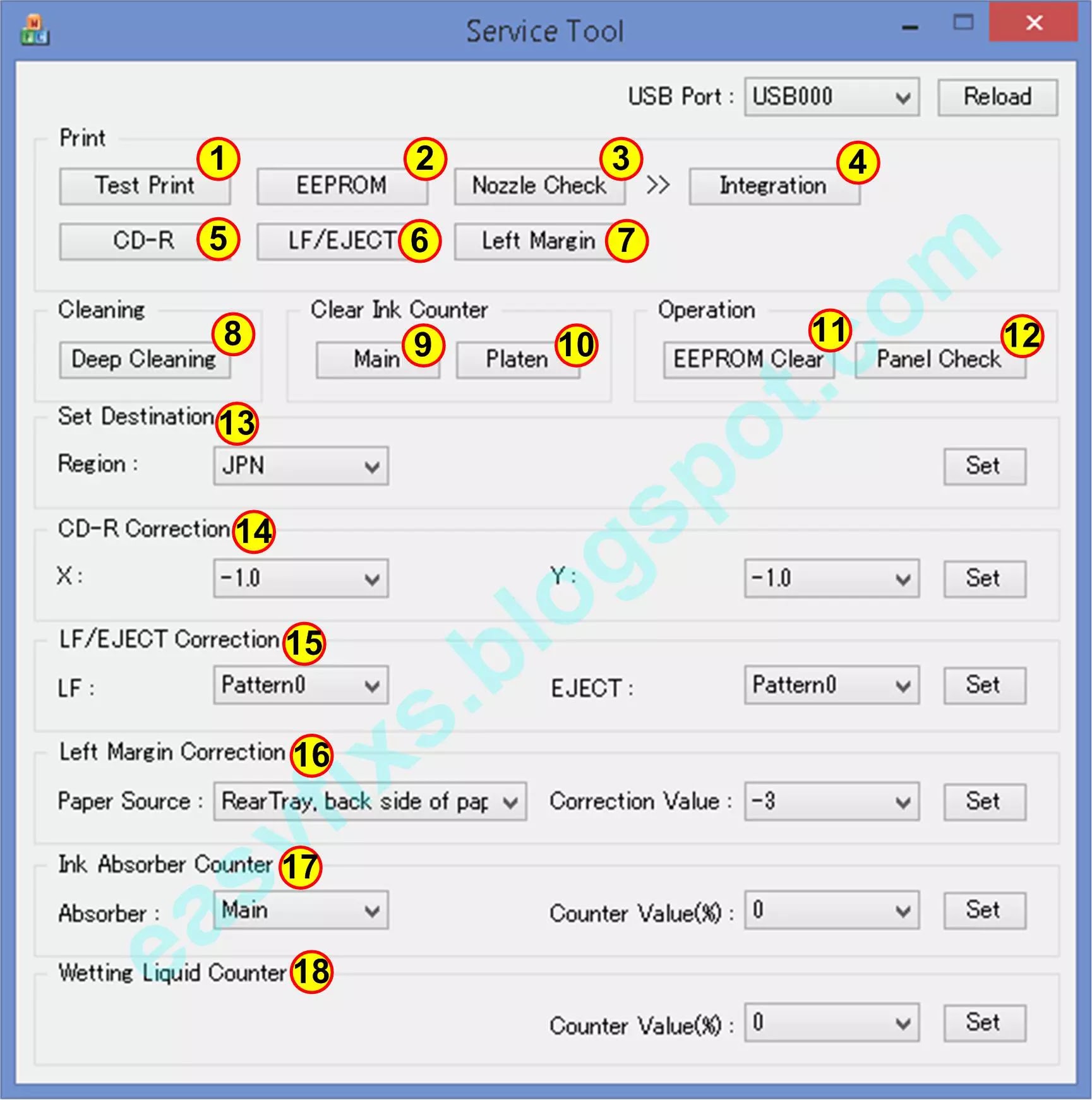

Functions of the buttons in Service Tool v.1050

1. Test Print

Function: Service test print

Remarks: Service test print items: Model name, ROM version, Ink absorber counter value (ink amount in the ink absorber), USB serial number, Destination, EEPROM information, Barcode (model name + destination), etc.

2. EEPROM

Function: EEPROM information print

Remarks: EEPROM information print items: Model name, Destination, ROM version, Ink absorber counter value (ink amount in the ink absorber), Print information, Error information, etc.

3. Nozzle Check

Function: Nozzle check pattern print

Remarks: The user nozzle check pattern is printed.

4. Integration

Function: Unified inspection pattern print

Remarks: The following printing is performed successively: Service test print, EEPROM information print, Unified inspection pattern print

5. CD-R

Function: CD-R check pattern print.

Remarks: Not used in servicing.

6. LF/Eject

Function: LF/Eject correction pattern print.

Remarks: Not used in servicing.

7. Left Margin

Function: Left margin pattern print

Remarks: Not used in servicing.

8. Deep Cleaning

Function: Print head deep cleaning.

Remarks: Cleaning of both Black and Color at the same time.

9. Main

Function: Main ink absorber counter resetting.

Remarks: Set a sheet of A4 or Letter sized plain paper. After the ink absorber counter is reset, the counter value is printed automatically.

10. Platen

Function: Platen ink absorber counter resetting.

Remarks: Not used in servicing.

11. EEPROM Clear

Function: EEPROM initialization.

Remarks: The following items are NOT initialized, and the shipment arrival flag is not on: Destination settings, Ink absorber counter value (ink amount in the ink absorber), USB serial number, Ink cartridge region code, Record of ink absorber counter resetting and setting, Record of repair at the production site, etc.

12. Panel Check

Function: Button and LCD test.

Remarks: Button and LCD test.

13. Set Destination

Function: Destination settings.

Remarks: Select the destination, and click Set. ASA (Asia), AUS (Australia), BRA (Brazil), CHN (China), CND (Canada), EUR (Europe), JPN (Japan), KOR (Korea), LTN (Latin), TWN (Taiwan), USA (United State).

14. CD-R Correction

Function: CD / DVD print position correction

Remarks: Not used in servicing.

15. LF/EJECT Correction

Function: LF/Eject correction value setting.

Remarks: Not used in servicing.

16. Left Margin Correction

Function: Left margin correction value setting.

Remarks: Not used in servicing.

17. Ink Absorber Counter

Function: Ink absorber counter value setting.

Remarks: Ink absorber counter setting.

18. Wetting Liquid Counter

Function: Wetting liquid counter setting

Remarks: Not used in servicing.

How to use Service Tool v.1050

1.  Enter Service Mode

2.  Reset the waste ink counter

1.  Enter Service Mode

• The AC Power cable is connected to a power source, the printer's USB cable is connected to the computer, and the printer is off. Then pay attention to the Power/ON button and the Stop/Reset/Resume/Cancel button.

1.   Press and hold the Stop/Reset/Resume/Cancel button (keep the Stop/Resume/Cancel button pressed and don't release it) then,

2.   Press and hold the Power/ON button (keep pressing the Power/ON button and do not release it.) Look at the Power/ON LED, if the Power/ON LED turns green/blue it means procedures 1 and 2 have been carried out correctly.

3.   Just release the Stop/Resume/Cancel button, while the Power/On button is still being held, then

4.   While holding down the Power/On button, press the Stop/Resume/Cancel button 2 times, then release the Power/ON button. Wait a few moments, the Power/ON LED will flash and finally turn green/blue. If the Power/ON LED turns green/blue, it means that the printer has entered Service Mode.

Note

• After following the procedure above, if the Power/ON LED turns green/blue and doesn't blink, it means the printer has entered Service Mode.
• After following the procedure above, if the Power/ON LED flashes green/blue it means the printer failed to enter Service Mode. Please turn off the printer, repeat the procedure above, and press the Stop/Reset/Resume/Cancel button 6 times (enter Service Mode without a scanner)
• Press the Stop/Reset/Resume/Cancel button 5 times (enter Service Mode with scanner), if this method fails, repeat the procedure above, and press the Stop/Reset/Resume/Cancel button 6 times (enter Service Mode without scanner).
• If you have tried the two methods above and the Power/ON LED continues to blink, it means the printer cannot enter Service Mode. Please read the following posts Canon Service Tool Error Code Mean and Canon Service Tools and Supported Printers for more information.

2.  Reset the waste ink counter

• If the Power/ON LED lights up green/blue and doesn't blink, it means the printer has entered Service Mode. Follow the procedure below on how to reset the printer.

5.   Download Service Tool v.1050
6.   Extract the rar file then open the Service Tool.

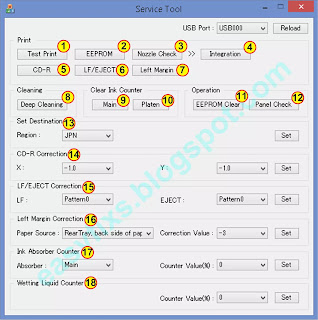

7.   Load A4 or Letter paper (5 sheets), then follow the procedure according to the image.

8.   Select the USB Port (1) of the printer. If the USB port of the printer is not found, press the Reload button for re-detection.

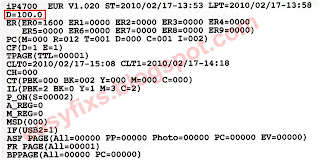

9.   Print EEPROM (2) data. Wait a few moments, the printer will print the EEPROM data from the printer, then pay attention to the print out of the EEPROM data. The waste ink amount is symbolized in D.

10.   Clear Ink Counter - select Main (3) to reset the main ink absorbent counter. Wait a few moments, the printer will print D=000.0 in the upper left corner of the paper. D=000.0 means that the main ink absorbent counter is reset to zero.

11.   Print the EEPROM (2) data again after the D value is reset, then compare the data EEPROM before and after reset. If the value of D after reset is D=000.0 it means that resetting the waste ink counter has been successful.

12.   If all goes well, turn off the printer by pressing the Power/ON button. Wait about 15 seconds then turn the printer back ON. Done.

Notes

If you need another version of the Service Tool, please open the following link

-  Service Tool v.1020 and Service Tool v.1030 - OPEN

-  Service Tool v.1050 - OPEN

-  Service Tool v.1071, Service Tool v.1072, Service Tool v.1073, Service Tool v.1074 - OPEN

-  Service Tool v.1081 - OPEN

-  Service Tool v.2000 - OPEN

-  Service Tool v.3000 - OPEN

-  Service Tool v.3200 - OPEN

-  Service Tool v.3400 - OPEN

-  Service Tool v.3600 - OPEN

-  Service Tool v.3900 - OPEN

-  Service Tool v.4718 - OPEN

-  Service Tool v.4720 - OPEN

-  Service Tool v.4904, Service Tool v.4905, Service Tool v.4906, Service Tool v.4907 - OPEN

-  Service Tool v.5103, Service Tool v.5105 - OPEN

-  Service Tool v.5301, Service Tool v.5306 - OPEN

-  Canon Service Tool Version - OPEN

-  Reset Canon Printers Manually - OPEN

Questions and Answers

Q: When the "Ink absorber full" error occurs, what should I do?

A: All you have to do is reset the waste ink counter to zero, followed by replacing the waste ink absorber with a new one. If a new waste ink absorber is not available in the market, you can clean the ink absorber and use it again. Resetting the waste ink counter becomes effective when the waste ink absorber is replaced or cleaned.

Q: The Service Tool cannot be opened, or all buttons in the Service Tool are inactive, or an error code appears: 002, 005, 006 when using the Service Tool. What to do?

A: Complete information regarding this issue, please read the Canon Service Tool Error Code Mean (Error code: 002, 005, 006, 007, 009, etc)

Q: Where can I get other Canon Service Tools?
A: For complete information regarding Canon Service Tool collection, please open Canon Service Tool Version

Q: I don't know which Service Tool supports my printer, where can I get information about it?
A: For complete information regarding Canon printers and the Service Tools used, please open the Canon Service Tools and Supported Printers

If you have trouble trying to repair your printer yourself, we recommend asking a Canon Service Center or a printer repair professional for help.
