Reset Canon Printers Manually


Reset a Canon printer is to reset the printer after previously changing parts, so that new parts that are installed, can be read correctly. Examples of replacements that require a reset are replacing the Logic board ass'y, Carriage motor, Carriage unit, Print head, Sheet feed unit, Timing sensor unit, Paper feed roller unit, Paper feed motor, Waste Ink absorber kit, etc.

When the Canon printer error and must be replaced parts, after the part has been replaced, the next step is to reset the Canon printer so that new parts that have just been installed can be read correctly. Of the many parts replacement done, the most frequently replaced part is the waste ink absorber. When the waste ink absorber is full, after the waste ink absorber is replaced, the next step is to reset the waste ink counter value.

Reset Canon Printers Manually

Based on information in the Canon Service Manual, resetting the waste ink counter can be done in two ways, reset manually and reset with the Service Tool. For manual reset, done by pressing the Power/Start/ON/OFF button, and Stop/Reset/Resume/Cancel, in a certain amount which is carried out alternately.

Reset can be done if the printer is in Service Mode. So after the waste ink absorber has been replaced, the next step is to bring the printer into Service Mode. After the printer is in Service Mode, the next step is to reset the printer (Manual or Service Tool).

For the printer to be in Service Mode, after the printer's USB cable is connected to the PC/Laptop, and the printer is turned off, press and release the Power/Start/ON/OFF button, and Stop/Reset/Resume/Cancel, in a certain amount which is carried out alternately. In principle, to enter Service Mode on all Canon printers is almost the same, either reset is done by Manual or Service Tool. Here's how to enter Service Mode on a Canon printer.

The button is used
- Power/Start/ON/OFF, adjust the buttons available on the printer.
- Stop/Reset/Resume/Cancel, adjust the buttons available on the printer.

Service Mode Operation Procedure:
1. Connect the printer's USB cable to the PC/Laptop, and the printer is off.
2. Press and hold the Stop/Reset/Resume/Cancel button (DO NOT release the button), then
3. Press and hold the Power/Start/ON/OFF button (DO NOT release the button), then
4. Release the Stop/Reset/Resume/Cancel button (Power/Start/ON/OFF button still pressed), then
5. Press the Stop/Reset/Resume/Cancel button x times and then release both buttons simultaneously (Stop/Reset/Resume/Cancel and Power/Start/ON/OFF). Read the x times value.

x times value
Press Stop/Reset/Resume/Cancel button for x times. The x values ​​are 2, 3, 5, and 6. Here are the differences in the x values ​​for 2, 3, 5, and 6.

2 times. Manually reset on:
  • Canon Pixma iP Series: iP100, iP2000, iP3000, iP3300, iP4000, iP4000R, iP4200, iP4300, iP4500, iP5000, iP5200, iP5200R, iP5300, iP6000D, iP6210D, iP6220D, iP6600D, iP8500.
  • Canon Pixma MX Series: MX300, MX308, MX310, MX318, MX700, MX850, MX7600
  • Canon Pixma MP Series: MP140, MP145, MP150, MP160, MP170, MP180, MP450, MP460, MP500, MP510, MP520, MP530, MP600, MP600R, MP610, MP800, MP800R, MP810, MP960, MP830, MP950, MP970
  • Canon Pixma iX Series: iX4000, iX5000
  • Canon Pixma Pro Series: Pro9000, Pro9500
  • Canon Pixus iP Series: iP3100, iP4100, iP4100R, iP4200, iP4300, iP4500, iP5200R, iP6100D, iP8600
  • Canon Pixus MP Series: MP170, MP450

3 times. Manually reset on:
  • Canon Bubble Jet i Series: i70, i80
  • Canon Pixma iP Series: iP90, iP90V
  • Canon Pixus Series: 50i, 80i, iP90

5 times. Reset with Service Tool.
  • For all the Canon printers that are reset using the Service Tool, to enter Service Mode, press the Stop/Reset/Resume/Cancel button 5 times.

6 times. Reset with Service Tool.
  • For all the Canon printers that are equipped with a Scanner, and reset using the Service Tool, to disable error detection on the Scanner press the Stop/Reset/Resume/Cancel button 6 times. So for Canon printers that are reset using the Service Tool, to enter Service Mode, press the Stop/Reset/Resume/Cancel button 5 times, if 5 times it fails to enter Service Mode, try pressing the Stop/Reset/Resume/Cancel button 6 times.

In this post will be discussed, How to Reset a Canon Printer Manually. While for resets using the Service Tool, can be read in other posts on this blog.


Reset a Canon printer with the manual method, after replaced the waste ink absorber, because an error occurs waste ink absorber is full


Below is a list of Canon printers that have been reset manually
  • Canon Bubble Jet i Series: i70, i80
  • Canon Pixma iP Series: iP90, iP90V, iP100, iP2000, iP3000, iP3300, iP4000, iP4000R, iP4200, iP4300, iP4500, iP5000, iP5200, iP5200R, iP5300, iP6000D, iP6210D, iP6220D, iP6600D, iP8500.
  • Canon Pixma MX Series: MX300, MX308, MX310, MX318, MX700, MX850, MX7600
  • Canon Pixma MP Series: MP140, MP145, MP150, MP160, MP170, MP180, MP450, MP460, MP500, MP510, MP520, MP530, MP600, MP600R, MP610, MP800, MP800R, MP810, MP960, MP830, MP950, MP970
  • Canon Pixma iX Series: iX4000, iX5000
  • Canon Pixma Pro Series: Pro9000, Pro9500
  • Canon Pixus Series: 50i, 80i
  • Canon Pixus iP Series: iP90, iP3100, iP4100, iP4100R, iP4200, iP4300, iP4500, iP5200R, iP6100D, iP8600
  • Canon Pixus MP Series: MP170, MP450

Canon printers have two waste ink absorbers namely Main waste ink absorber, and Platen waste ink absorber. However, not all printers have two waste ink absorbers. Sometimes a printer only has one waste ink absorber, which is the Main waste ink absorber. From the list of printers above, we will group them into two, namely printers that only have Main waste ink absorber, and printers that have Main and Platen waste ink absorber.

A printer that has a Main waste ink absorber
  • Canon Bubble Jet i Series: i70, i80 (3 times)
  • Canon Pixma iP Series: iP100, iP3000, iP4000, iP4000R, iP4200, iP4300, iP4500, iP5000, iP5200, iP5200R, iP5300, iP6000D, iP6600D, iP8500 (2 times)
  • Canon Pixma MX Series: MX850 (2 times)
  • Canon Pixma MP Series: MP170, MP450, MP530, MP600, MP600R, MP610, MP810, MP960, MP830, MP950, MP970 (2 times)
  • Canon Pixma iX Series: iX4000, iX5000 (2 times)
  • Canon Pixus Series: 50i, 80i (3 times)
  • Canon Pixus iP Series: iP3100, iP4100, iP4100R, iP4200, iP4300, iP4500, iP5200R, iP6100D, iP8600, (2 times)
  • Canon Pixus MP Series: MP170, MP450 (2 times)

A printer that has a Main and Platen waste ink absorber
  • Canon Pixma iP Series: iP90, iP90V (3 times)
  • Canon Pixma iP Series: iP2000, iP3300, iP6210D, iP6220D (2 times)
  • Canon Pixma MX Series: MX300, MX308, MX310, MX318, MX700, MX7600 (2 times)
  • Canon Pixma MP Series: MP140, MP145, MP150, MP160, MP180, MP460, MP500, MP510, MP520, MP800, MP800R (2 times)
  • Canon Pixma Pro Series: Pro9000, Pro9500 (2 times)
  • Canon Pixus Series: iP90 (3 times)


The difference between the two printer groups above is
- For printers that only have Main waste ink absorber, reset is only done on the Main waste ink absorber. In this post, for printers that only reset the Main Waste Ink Absorber, we discussed in Method #1.
- For printers that have Main and Platen waste ink absorber, reset is done twice, namely reset Main waste ink absorber and reset Platen waste ink absorber. In this post, for printers that are reset Main and Platen waste ink absorber, we discuss in Method #2.


Method #1
Used for printers:
  • Canon Bubble Jet i Series: i70, i80 (3 times)
  • Canon Pixma iP Series: iP100, iP3000, iP4000, iP4000R, iP4200, iP4300, iP4500, iP5000, iP5200, iP5200R, iP5300, iP6000D, iP6600D, iP8500 (2 times)
  • Canon Pixma MX Series: MX850 (2 times)
  • Canon Pixma MP Series: MP170, MP450, MP530, MP600, MP600R, MP610, MP810, MP960, MP830, MP950, MP970 (2 times)
  • Canon Pixma iX Series: iX4000, iX5000 (2 times)
  • Canon Pixus Series: 50i, 80i (3 times)
  • Canon Pixus iP Series: iP3100, iP4100, iP4100R, iP4200, iP4300, iP4500, iP5200R, iP6100D, iP8600, (2 times)
  • Canon Pixus MP Series: MP170, MP450 (2 times)

Service Mode Operation Procedure
1).   Connect the printer's USB cable to the PC/Laptop, and the printer is off.
2).   Press and hold the Stop/Reset/Resume/Cancel button (DO NOT release the button), then
3).   Press and hold the Power/Start/ON/OFF button (DO NOT release the button), then
4).   Release the Stop/Reset/Resume/Cancel button (Power/Start/ON/OFF button still pressed), then
5).   Press the Stop/Reset/Resume/Cancel button x times and then release both buttons simultaneously (Stop/Reset/Resume/Cancel and Power/Start/ON/OFF).  Read how to do step 5).

How to do step 5)
Example: x value is 2 times.
5). Press and release the Stop/Reset/Resume/Cancel button 1 time, then press and hold the Stop/Reset/Resume/Cancel button 1 time, then release both buttons simultaneously (Stop/Reset/Resume/Cancel and Power/Start/ON/OFF).

Note: When the LED lights green, or the LED stops flashing, the printer has successfully entered Service Mode. If the LED keeps flashing or lights orange, the printer failed to enter Service Mode. Turn off the printer, then repeat the Service Mode Operation Procedure.


Press the Stop/Reset/Resume/Cancel button according to the table below, then press the Power/Start/ON/OFF button to execute.

Tabel 1. Menu Selection Mode
 Time(s) LED Function
 0 times Green Power off
 1 time Orange Service test print
 2 times Green EEPROM information print
 3 times Orange EEPROM initialization
 4 times Green Waste ink counter resetting
 5 times Orange Enter the destination settings mode
 6 times Green Print head deep cleaning

6).   Insert paper (A4 or Letter), then press the Stop/Reset/Resume/Cancel button 2 times, then press the Power/Start/ON/OFF button to execute. Wait for the printer to print "EEPROM information print" before resetting. After the printer has finished printing, the printer will return to "Table 1. Menu Selection Mode".

7).   To reset the waste ink counter, press the Stop/Reset/Resume/Cancel button 4 times, then press the Power/Start/ON/OFF button to execute. When this operation is carried out, the LED will blink once, as a reset has been done. After a successful reset, the printer will return to "Table 1. Menu Selection Mode".

8).   Insert paper (A4 or Letter), then press the Stop/Reset/Resume/Cancel button 2 times, then press the Power/Start/ON/OFF button to execute. Wait for the printer to print "EEPROM information print" after resetting. Compare "EEPROM information print" before and after reset. See the value of D (Waste ink amount). If after reset D=000.0 means that the reset has been successfully performed. After a successful reset, the printer will return to "Table 1. Menu Selection Mode".

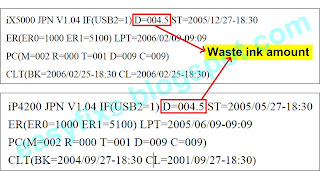

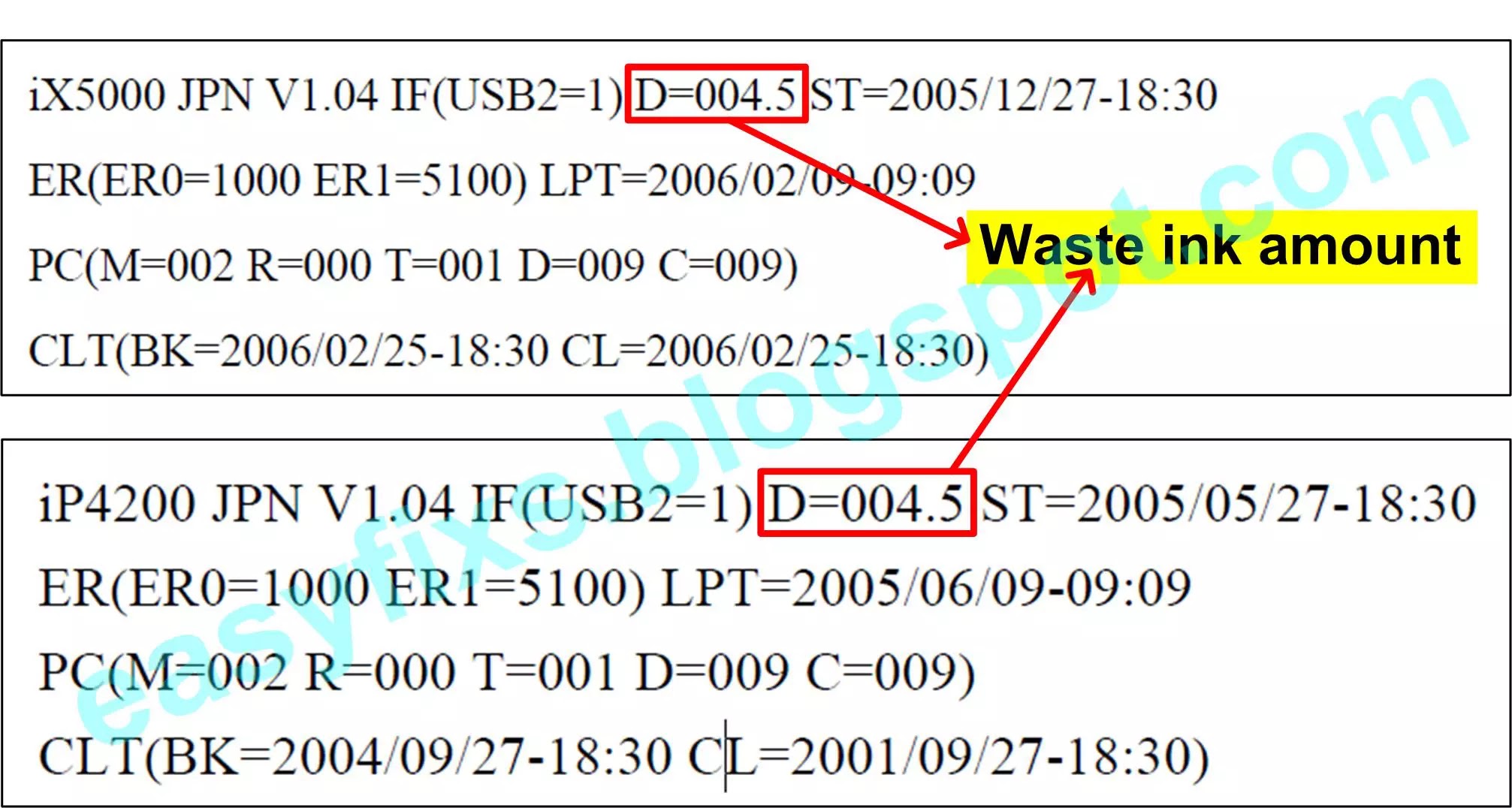

Compare D values before and after reset
EEPROM information print

9).   Press the Power/Start/ON/OFF button to turn off the printer, wait 15 seconds then turn ON the printer. Done.


Method #2
Used for printers:
  • Canon Pixma iP Series: iP90, iP90V (3 times)
  • Canon Pixma iP Series: iP2000, iP3300, iP6210D, iP6220D (2 times)
  • Canon Pixma MX Series: MX300, MX308, MX310, MX318, MX700, MX7600 (2 times)
  • Canon Pixma MP Series: MP140, MP145, MP150, MP160, MP180, MP460, MP500, MP510, MP520, MP800, MP800R (2 times)
  • Canon Pixma Pro Series: Pro9000, Pro9500 (2 times)
  • Canon Pixus Series: iP90 (3 times)

Service Mode Operation Procedure
1).   Connect the printer's USB cable to the PC/Laptop, and the printer is off.
2).   Press and hold the Stop/Reset/Resume/Cancel button (DO NOT release the button), then
3).   Press and hold the Power/Start/ON/OFF button (DO NOT release the button), then
4).   Release the Stop/Reset/Resume/Cancel button (Power/Start/ON/OFF button still pressed), then
5).   Press the Stop/Reset/Resume/Cancel button x times and then release both buttons simultaneously (Stop/Reset/Resume/Cancel and Power/Start/ON/OFF).  Read how to do step 5).

How to do step 5)
Example: x value is 2 times.
5). Press and release the Stop/Reset/Resume/Cancel button 1 time, then press and hold the Stop/Reset/Resume/Cancel button 1 time, then release both buttons simultaneously (Stop/Reset/Resume/Cancel and Power/Start/ON/OFF).

Note: When the LED lights green, or the LED stops flashing, the printer has successfully entered Service Mode. If the LED keeps flashing or lights orange, the printer failed to enter Service Mode. Turn off the printer, then repeat the Service Mode Operation Procedure.


Press the Stop/Reset/Resume/Cancel button according to the table below, then press the Power/Start/ON/OFF button to execute.

Tabel 1. Menu Selection Mode
 Time(s) LED Function
 0 times Green Power off
 1 time Orange Service test print
 2 times Green EEPROM information print
 3 times Orange EEPROM initialization
 4 times Green Enter the waste ink counter resetting mode
 5 times Orange Enter the destination settings mode
 6 times Green Print head deep cleaning

6).   Insert paper (A4 or Letter), then press the Stop/Reset/Resume/Cancel button 2 times, then press the Power/Start/ON/OFF button to execute. Wait for the printer to print "EEPROM information print" before resetting. After the printer has finished printing, the printer will return to "Table 1. Menu Selection Mode".

7).   Press the Stop/Reset/Resume/Cancel button 4 times then press the Power/Start/ON/OFF button to execute (enter the waste ink counter resetting mode, see Table 1.)


After entering the waste ink counter reset mode, follow the Waste ink counter reset procedures. There are 3 types of reset procedures for waste ink counters.

Procedure 1
Follow the procedure below, for the printer:
  • Canon Pixma iP Series: iP90, iP90V, iP3300, iP6210D
  • Canon Pixma MX Series: MX300, MX308, MX310, MX318, MX700
  • Canon Pixma MP Series: MP140, MP145, MP150, MP160, MP180, MP460, MP510, MP520
  • Canon Pixus Series: iP90
Table 2a. Waste ink counter reset procedures
 Time(s)LED  Waste ink counter to be reset
 0 times Green Reset the main waste ink counter (0%)
 1 time Orange Reset the platen waste ink counter (0%)
 2 times Green Reset both the main and platen ink counter (0%)

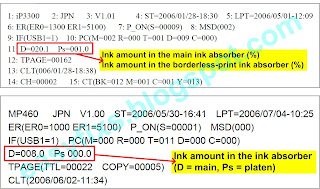

EEPROM information print for printers including Procedure 1

8).   To reset both the main and platen ink counter (0%), press the Stop/Reset/Resume/Cancel button 2 times then press the Power/Start/ON/OFF button to execute (see Table 2a). When this operation is carried out, the LED will blink once, as a reset has been done. After a successful reset, the printer will return to "Table 1. Menu Selection Mode"


Procedure 2
Follow the procedure below, for the printer:
  • Canon Pixma iP Series: iP2000, iP6220D
Table 2b. Waste ink counter reset procedures
 Time(s)LED  Waste ink counter to be reset
 0 times Green Reset the main waste ink counter (0%)
 1 time Orange Reset the platen waste ink counter (0%)
 2 times Green Reset both the main and platen ink counter (50%)

EEPROM information print for printers including Procedure 2

8).   To reset the main waste ink counter (0%), no need to press the Stop/Reset/Resume/Cancel button just press the Power/Start/ON/OFF button 1 time (see table 2b)After a successful reset, the printer will return to "Table 1. Menu Selection Mode"To reset the platen waste ink counter (0%). Press the Stop/Reset/Resume/Cancel button 4 times then press the Power/Start/ON/OFF button (enter the waste ink counter resetting mode, see Table 1), and then press the Stop/Reset/Resume/Cancel button 1 time (see Table 2b), then press the Power/Start/ON/OFF button. After a successful reset, the printer will return to "Table 1. Menu Selection Mode".


Procedure 3
Follow the procedure below, for the printer:
  • Canon Pixma MX Series: MX7600
  • Canon Pixma MP Series: MP500, MP800, MP800R
  • Canon Pixma Pro Series: Pro9000, Pro9500
Table 2c. Waste ink counter reset procedures
 Time(s) Waste ink counter reset procedures Remarks
 0 times Reset the main waste ink counter (0%)
 1 time Reset the platen waste ink counter (0%) Not valid for the MX7600, MP500, MP800, MP800R, Pro9000, Pro9500
 2 times Reset both the main and platen waste ink counter (0%) Only the main waste ink absorber is valid for the MX7600, MP500, MP800, MP800R, Pro9000, Pro9500

EEPROM information print for printers including Procedure 3

8).   To reset the main waste ink counter (0%), no need to press the Stop/Reset/Resume/Cancel button, just press the Power/Start/ON/OFF button 1 time (see table 2c)When this operation is carried out, the LED will blink once, as a reset has been done. After a successful reset, the printer will return to "Table 1. Menu Selection Mode".


Note: So to reset waste ink counter, there are 3 different procedures. Use the procedure that corresponds to the printer that was repaired. For step 9) and so on, all printers are the same. So, the difference occurs in step 8) that is when doing a waste ink counter reset.


9).   Insert paper (A4 or Letter), then press the Stop/Reset/Resume/Cancel button 2 times (see table 1), then press the Power/Start/ON/OFF button to execute. Wait for the printer to print "EEPROM information print" after resetting. Compare "EEPROM information print" before and after reset. See the value of D (Waste ink amount). If after reset D=000.0 means that the reset has been successfully performed. After a successful reset, the printer will return to "Table 1. Menu Selection Mode".

Compare D values before and after reset
EEPROM information print

11).  Press the Power/Start/ON/OFF button to turn off the printer, wait 15 seconds then turn ON the printer. Done.


Waste ink counter resets can be done in two ways, manually and by Service Tool. For resets that are done manually, divided into two methods (Method #1 and Method #2). For printers that use Method #2, in step 8) they are divided into 3 procedures. This post was written referring to Canon's Printer Service Manual document.
