External View and Parts List on Canon iP4700, iP4720, iP4740, iP4750, iP4760, iP4780

Information below for Canon iP4700 series: Canon iP4700, iP4720, iP4740, iP4750, iP4760, iP4780. For a complete discussion (7 chapters) regarding repairs to the Canon iP4700 series, please read Troubleshooting Canon iP4700 series.

When there is damage to the printer and spare parts must be replaced, the main thing we need is to know the name and serial number of the damaged spare part. If we know the name and serial number of the damaged part, replacement parts can be done. Because the printer is a mechanical device consisting of many interrelated parts, there are many parts that are installed in the printer mechanism. By knowing the name and serial number of the required spare parts, we can purchase genuine spare parts correctly. You can read a list of printer defects that may require replacement of spare parts at Service Call Error and Solution on Canon iP4700 series. You can read about printer repairs that do not require replacement of spare parts at Operator Call Error and Solution on Canon iP4700 series.

As a mechanical printing device, the printer is composed of a series of parts that work mechanically and are interrelated. When there is damage to one part, the printer mechanism will be disrupted and damage occurs or the printer cannot be used. In the replacement of parts, there are replacement parts that do not require resetting the printer and there are replacement parts that require resetting the printer. Broadly speaking, there are three methods of replacing Canon printer parts:

1.  Replacement parts that do not require resetting the printer. Example: replacement of Timing Slit Disk Film, Carriage Unit, Carriage Motor, LF/EJ Slit Film, LF/EJ Timing Sensor Unit, Paper Feed Roller Unit, Paper Feed Motor, etc.

2.  Replacement of spare parts followed by resetting the printer. Example: replacement of the ink absorber kit. A complete discussion for replacing the ink absorber kit, please read the following post Fix Canon iP4700 series error 5B00, 5B01, 1700, 1701.

3.  Replacement of spare parts that begins with printing the EEPROM data, replacing the damaged part, then entering the old EEPROM data into the new part that is installed. Example: replacement of the Logic Board.

Of the three methods above, if the replacement parts are the ink absorber kit and logic board then you need the Service Tool software to reset the printer. However, if what is being replaced is not an ink absorber kit or logic board, then after the replacement of spare parts is complete, the printer does not need to be reset.

External View and Parts List on Canon iP4700 series

Figure 01. Packing Contents and Print Head on Canon iP4700 series

Figure 02. AC Adapter on Canon iP4700 series

Figure 03. External Covers on Canon iP4700 series

Figure 04. Bottom Case and Ink Absorber on Canon iP4700 series

Figure 05. Logic Board Ass'y and PE Sensor Board Ass'y on Canon iP4700 series

Figure 06. Sheet Feed Unit on Canon iP4700 series

Figure 07. Carriage Unit and Pressure Roller Unit on Canon iP4700 series

Figure 08. Platen Unit and Spur Unit on Canon iP4700 series

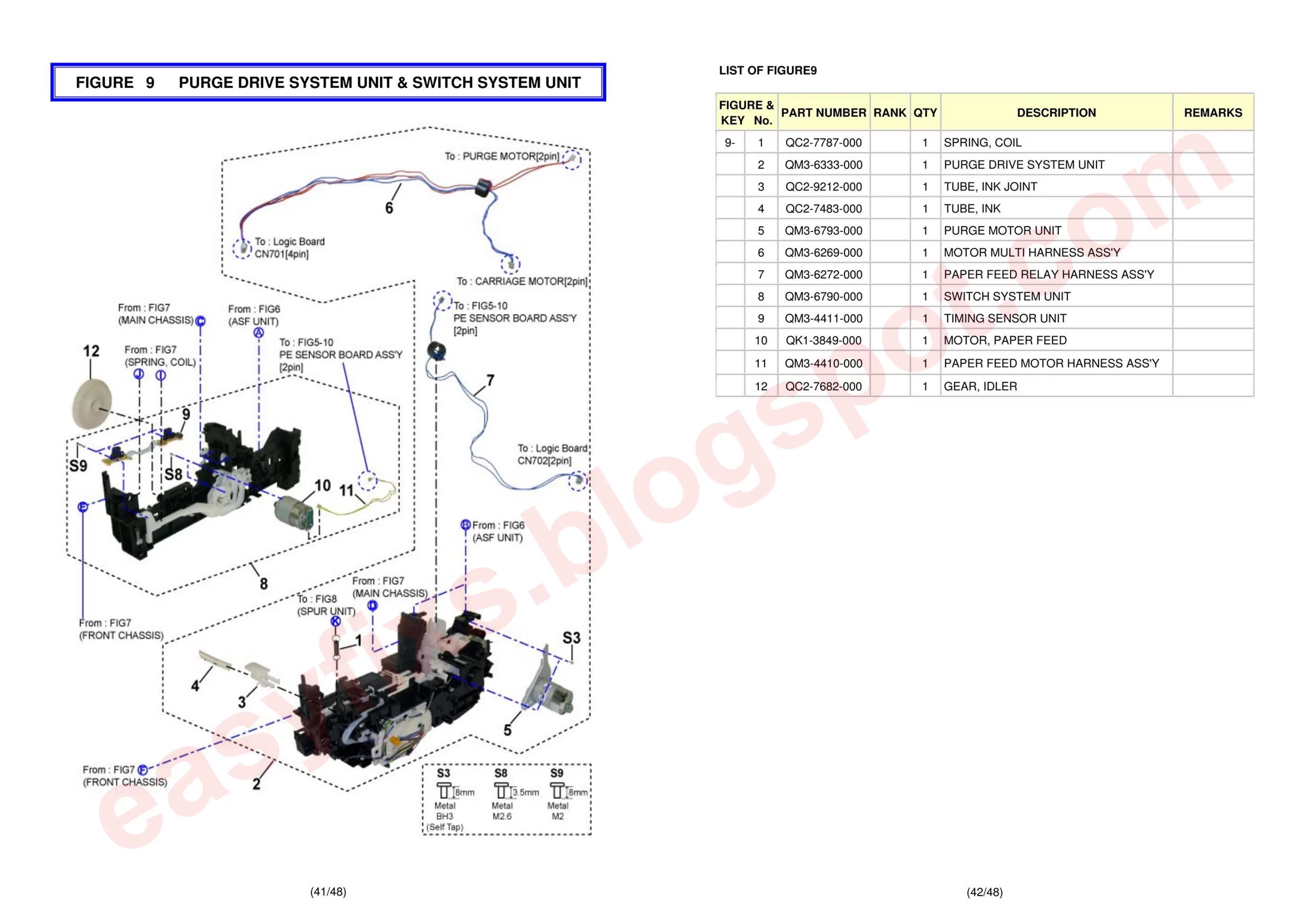

Figure 09. Purge Drive System Unit and Switch System Unit on Canon iP4700 series

Figure 10. Option and Consumables on Canon iP4700 series

Figure 11a. Tool on Canon iP4700 series

Figure 11b. Tool on Canon iP4700 series

A complete discussion regarding Canon iP4700 series repairs, please read Troubleshooting Canon iP4700 series (7 chapters). If you have trouble doing it yourself, we recommend asking for the help of the nearest Canon Service Center or printer repair professional.
