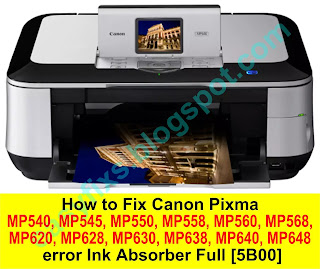

How to Reset Canon Pixma MP640, MP648 error Ink Absorber Full [5B00] [5B01]


Operator Call Errors
Error: Warning: The ink absorber becomes almost full.
Error code: [1700]
Message on the LCD: The ink absorber is almost full. Press [OK] to continue printing.
Contact the service center for replacement.

Service Call Errors
Cycles of blinking of Alarm and Power LEDs: 7 times
Error: Ink absorber full
Error code:    5B00: The main ink absorber is full (overseas).
5B01: The main ink absorber is full (Japan).
Conditions: The ink absorber is supposed to be full.
Message on the LCD: Ink absorber full. Contact the service center for replacement.

Solution: Reset the printer



Reset Canon Pixma MP640, MP648 error Ink Absorber Full [5B00] [5B01]


Before resetting, the printer must be in Service Mode.

STEP 1 - Enter Service Mode

Service mode operation procedures:
1)   Turn off a printer
2)   Press and hold the STOP button
3)   Press and hold the ON button (do not release both buttons)
4)   Release the STOP button (do not release the ON button)
5)   While holding the ON button, press the STOP button 2 times, and then release both the ON and STOP buttons together.

About point 5):
While holding the ON button, press and release the STOP button 1 time, then press and hold the STOP buttons, then release both the ON and STOP buttons together.

Note:
  • When the power LED lights in green and the machine displays "Service Mode Idle", it's mean the printer is ready for the service mode operation.
  • If the power LED does not turn green, the printer fails to enter Service Mode. Please, turn off the printer and then repeat Service mode operation procedures.

Service Mode Idle

STEP 2 - Reset error Ink Absorber Full [5B00] [5B01]

Reset error ink absorber full with Service Tool v.1050
  • Download Service Tool v.1050
  • Extract file and open Service Tool. If Service Tool can't be open, unplug the USB cable and then open the Service Tool. After the open Service Tool, re-connect USB cable.
  • Load paper A4 or Letter
  • Select USB Port (1)
  • For your reference in servicing, click EEPROM information print before resetting (2)
  • Clear Ink Counter, click MAIN (3). Wait for the printer to finish printing D=000.0. D is a Waste ink amount. D=000.0 means "The ink absorber counter has been reset to zero".
The ink absorber counter has been reset to zero
  • Select the destination, Region: ASA, AUS, BRA, CHN, CND, EUR, JPN, KOR, LTN, TWN,
  • USA (4) and then click SET (5)
  • Click EEPROM information print once again after resetting (1).
  • Compare EEPROM information before and after reset, look at the value of D (Waste ink amount).
  • If all goes well, close Service Tool
  • Turn off the printer (wait 10 seconds)
  • Turn on printer and printer ready to use
